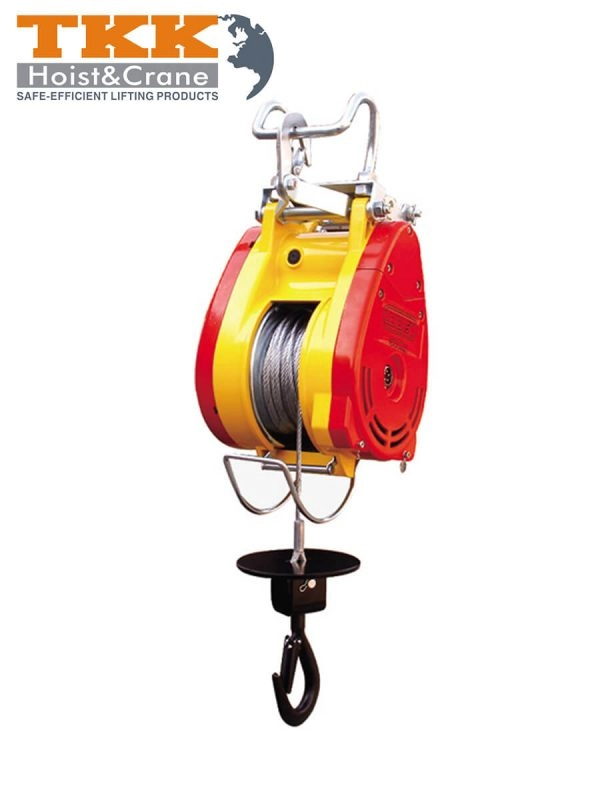

Suspending Mini Electric Winch
Features
- Aluminum alloy body cover provides lightweight, sturdy and durability.
- Temperature protection can be used longer.
- Adopt dual braking system, double protection in safe and reliable.
- With automatic upper limit switch when rope disc touches the limit arm, hoist is automatically stopped.
- High tensile alloy galvanized wire rope in wear resistance and high safety.
- All gears are made from high quality alloy steel of extreme surface hardness.
- Wireless pendant is optional.
Specification
| Rated Load(kg) | 160/180/230/250/300 | 280/360 | 500 | |
| Lifting Height(m) | 30 | 60 | 30 | |
| Wire rope Dia(mm) | 5 | 5 | 6 | |
| Motor | 1200W | 160 | ||
| 1300W | 180/230/280 | |||
| 1500W | 250 | |||
| 1600W | 300/360/500 | |||
| Lifting Speed | 50HZ | 160/180/230/250/300 | 19m/min | |
| 280/360/500 | 13m/min | |||
| 60HZ | 160/180/230/250/300 | 23m/min | ||
| 280/360/500 | 15m/min | |||
| Power Supply | Single phase 110V-120V , 220V-240V, AC 50-60HZ | |||
| Duty Cycle | ED 25% Max , on time 15min/hr,Max.number of starts :150/hr | |||
| International Protect | 54 | |||
| Insulation Class | F | |||
