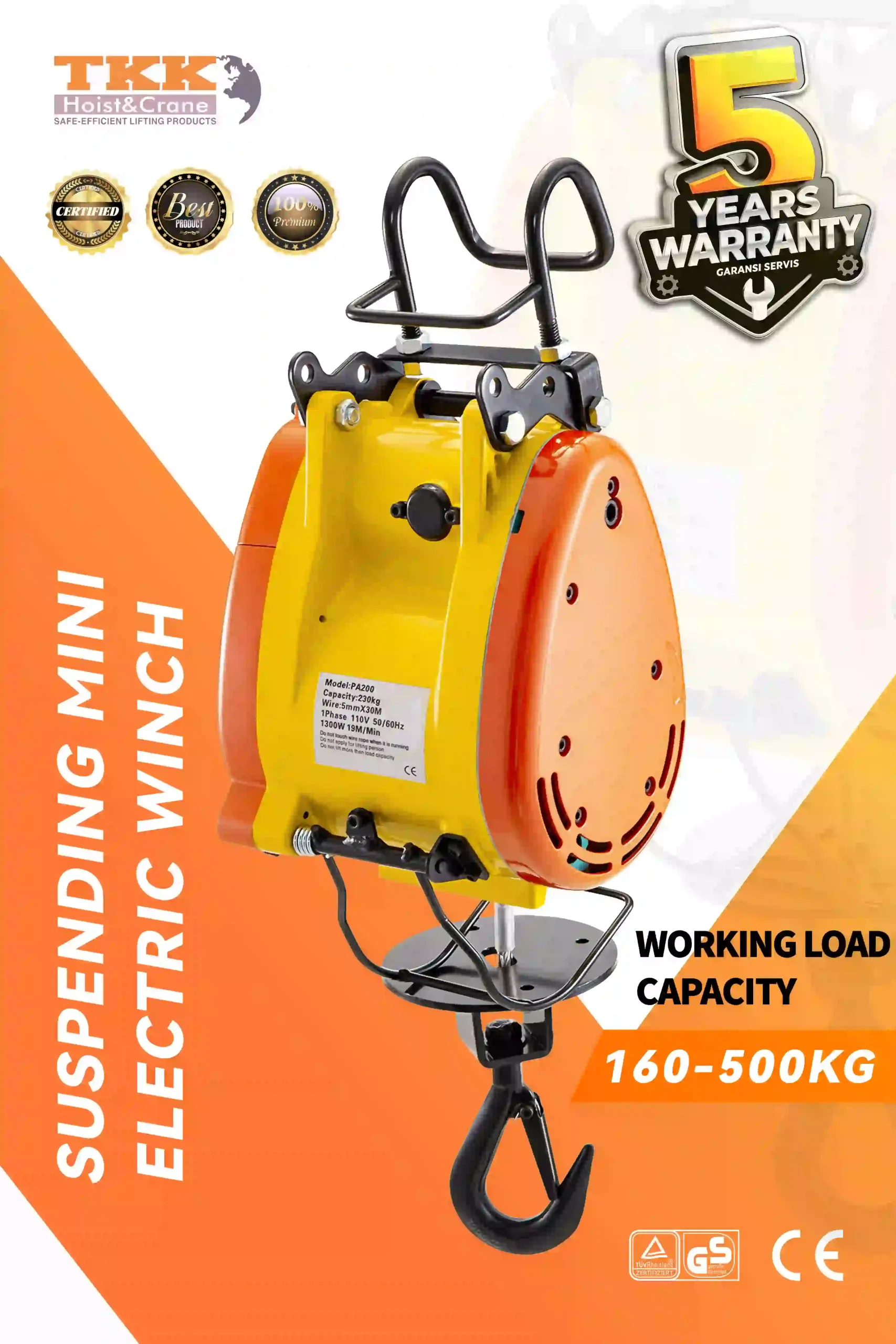

TKK Suspending Mini Electric Winch – Compact Electric Lifting Winch 160kg to 500kg
Products Details
The TKK Suspending Mini Electric Winch is a compact and efficient lifting solution designed for light-duty material handling applications. Available in capacities from 160kg to 500kg, the BL/S/T/M series provides smooth lifting performance, easy operation, and reliable safety protection.
The winch adopts a direct-coupled DC control system, reducing complicated wiring and improving maintenance convenience. The quick-connect aviation plug design for the control switch and power cable allows fast installation and replacement.
Equipped with a high-efficiency motor system, the winch provides strong lifting power and stable operation. The brushless motor models feature excellent durability and low maintenance requirements, while high-temperature resistant enameled wire supports long-term operation under demanding working conditions.
The TKK mini electric winch uses a dual braking system combining mechanical ratchet clutch braking and electrical motor braking. In case of power failure or abnormal operation, the brake system quickly locks the load to ensure safe lifting.
The winch also features dual limit protection. The machine automatically stops when the wire rope reaches the upper limit or reverses direction, improving operational safety.
With compact structure, lightweight design, and flexible installation, the TKK Suspending Mini Electric Winch is widely used in workshops, warehouses, construction sites, and equipment handling applications.
Each TKK Suspending Mini Electric Winch is inspected before shipment to ensure:
The winch adopts a direct-coupled DC control system, reducing complicated wiring and improving maintenance convenience. The quick-connect aviation plug design for the control switch and power cable allows fast installation and replacement.
Equipped with a high-efficiency motor system, the winch provides strong lifting power and stable operation. The brushless motor models feature excellent durability and low maintenance requirements, while high-temperature resistant enameled wire supports long-term operation under demanding working conditions.
The TKK mini electric winch uses a dual braking system combining mechanical ratchet clutch braking and electrical motor braking. In case of power failure or abnormal operation, the brake system quickly locks the load to ensure safe lifting.
The winch also features dual limit protection. The machine automatically stops when the wire rope reaches the upper limit or reverses direction, improving operational safety.
With compact structure, lightweight design, and flexible installation, the TKK Suspending Mini Electric Winch is widely used in workshops, warehouses, construction sites, and equipment handling applications.
Each TKK Suspending Mini Electric Winch is inspected before shipment to ensure:
- Motor Performance Test
- Brake System Inspection
- Limit Protection Test
- Wire Rope Quality Check
- Final Function Test
Product Features
Direct Control System
Simplified electrical structure reduces wiring complexity and improves maintenance efficiency.
High Efficiency Motor
Powerful motor design provides stable lifting performance and reliable operation.
Dual Brake Protection
Mechanical and electrical braking systems provide safe load holding performance.
Double Limit Safety System
Automatic stopping function prevents over-winding and reverse operation.
Quick Connector Design
Aviation plug connection allows easy installation and convenient maintenance.
Compact Suspending Design
Lightweight structure is suitable for small-space lifting applications.
Technical Specifications
BL Series (Brushless Motor)
| Model | Load (kg) | Soft Start Speed (m/min) | Lift Height | Motor Power (W) | Net Weight (kg) |
| BL170 | 170 | 6–21 | Φ5mm×30m | 1700 | 15.3 |
| BL260 | 260 | 7–19 | Φ5mm×60m | 2100 | 17 |
| BL340 | 340 | 6–17 | Φ6mm×30m | 2400 | 23 |
| BL490 | 490 | 5–16 | Φ6mm×30m | 2800 | 24 |
Protection Grade: IP54
Insulation Class: F Class
S / T / M Series
| Series | Rated Load (kg) | Speed (m/min) | Lift Height | Voltage | Motor Power (W) | Net Weight (kg) |
| S Series | 160/180/230/250/300 | 19 | Φ5mm×30m | Single Phase 110V–220V / 220–240V 50/60Hz | 1300/1300/1300/1500/1600 | 18.3/25.3/23.8 |
| T Series | 280/360 | 13 | Φ5mm×60m | Single Phase 110V–220V / 220–240V 50/60Hz | 1300/1600 | 18.5/25.3/23.8 |
| M Series | 500 | 13 | Φ6mm×30m | Single Phase 110V–220V / 220–240V 50/60Hz | 1800 | 19.2/29.5/25 |
Protection Class: Main Unit IP40, Controller IP54
Insulation Class: F Class
Product Advantages
- Capacity range from 160kg to 500kg
- Compact and lightweight design
- Brushless motor option available
- Single-phase voltage flexibility
- Direct DC control system
- Dual braking safety protection
- Automatic limit protection
- Quick connector structure
- Low maintenance requirement
- Suitable for indoor lifting operations
- OEM & ODM customization available
Applications
The TKK Suspending Mini Electric Winch is suitable for:
- Workshop Lifting
- Warehouse Material Handling
- Construction Sites
- Equipment Installation
- Small Machinery Handling
- Maintenance Operations
- Indoor Cargo Lifting
- Production Line Handling
- Small Space Lifting Tasks
Why Choose TKK Suspending Mini Electric Winch?
The TKK Suspending Mini Electric Winch combines compact design, efficient motor performance, and reliable safety systems to provide a practical lifting solution.
With dual braking protection, automatic limit control, and flexible voltage options, the BL/S/T/M series delivers safe and stable lifting performance for various light-duty applications.
