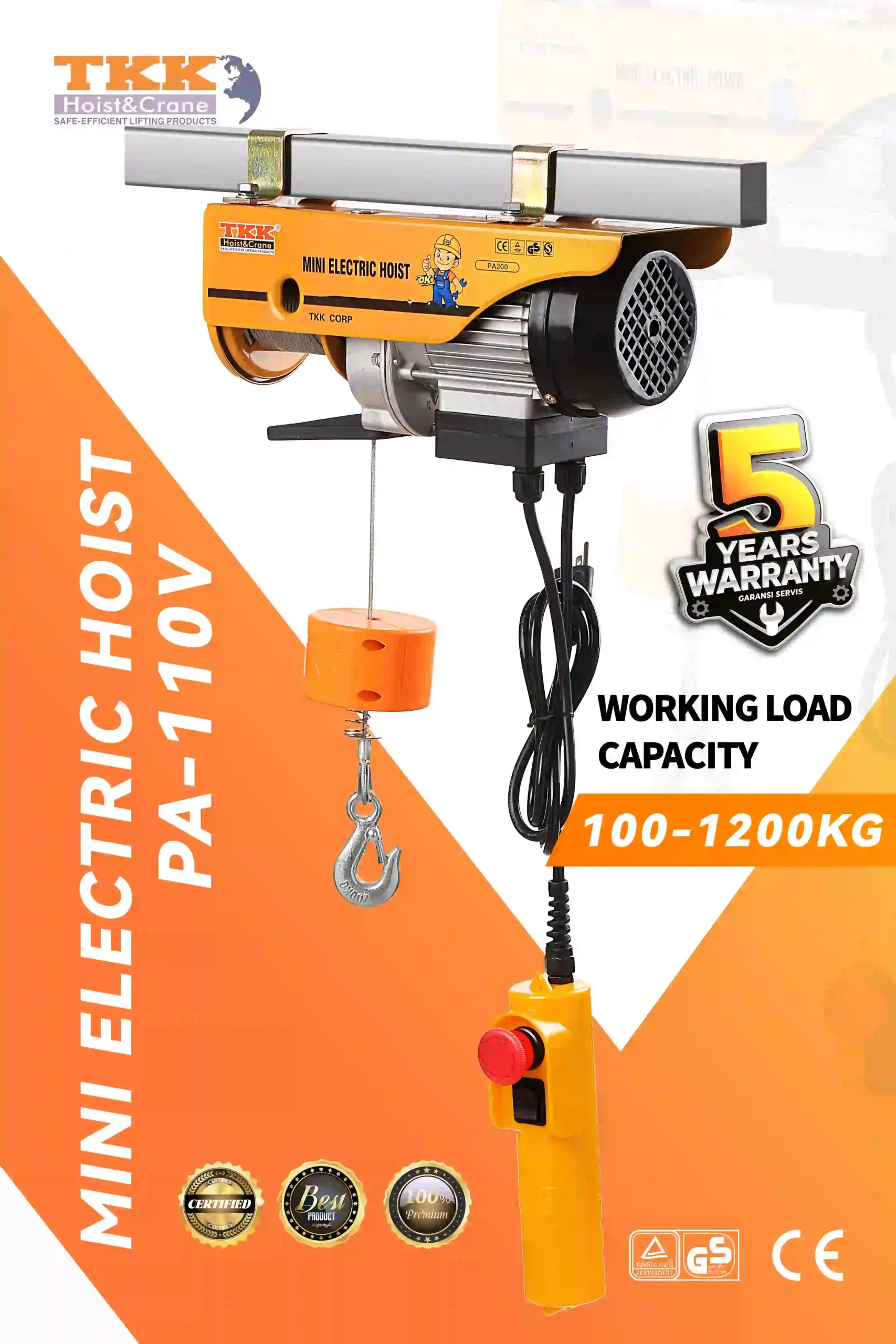

TKK PA-110V Mini Electric Hoist – Portable Wire Rope Hoist 100kg to 1200kg
Products Details
The TKK PA-110V Mini Electric Hoist is a compact and reliable lifting solution designed for light-duty and general material handling applications. Available in capacities from 100kg to 1200kg, the PA-110V series provides convenient lifting performance with simple installation and easy operation.
Powered by AC 110V 50/60Hz, this mini electric hoist is suitable for low-voltage working environments. The compact structure allows flexible use in workshops, garages, warehouses, and other areas where space is limited.
The PA-110V electric hoist adopts a lightweight aluminum alloy casing, providing excellent strength while reducing the overall weight of the equipment. The durable housing improves portability and helps protect internal components during daily operation.
Equipped with a 100% copper wire winding motor, the hoist provides high electrical conductivity, low resistance, and excellent heat resistance. The motor design improves operating stability and reduces the risk of overheating during lifting work.
The hoist uses a high-strength anti-rotation aviation steel wire rope and forged alloy steel hook with safety latch to ensure reliable lifting performance and safe load handling.
The PA series supports both single hook and double hook lifting modes. Users can select different lifting capacities and speeds according to their working requirements.
The hoist is designed with multiple safety protection systems:
Powered by AC 110V 50/60Hz, this mini electric hoist is suitable for low-voltage working environments. The compact structure allows flexible use in workshops, garages, warehouses, and other areas where space is limited.
The PA-110V electric hoist adopts a lightweight aluminum alloy casing, providing excellent strength while reducing the overall weight of the equipment. The durable housing improves portability and helps protect internal components during daily operation.
Equipped with a 100% copper wire winding motor, the hoist provides high electrical conductivity, low resistance, and excellent heat resistance. The motor design improves operating stability and reduces the risk of overheating during lifting work.
The hoist uses a high-strength anti-rotation aviation steel wire rope and forged alloy steel hook with safety latch to ensure reliable lifting performance and safe load handling.
The PA series supports both single hook and double hook lifting modes. Users can select different lifting capacities and speeds according to their working requirements.
The hoist is designed with multiple safety protection systems:
- Emergency Stop Switch
- Upper & Lower Limit Protection (Optional)
- Thermal Motor Protection
- Safety Hook Design
Each TKK PA-110V Mini Electric Hoist is carefully inspected before shipment to ensure:
- Motor Performance Inspection
- Lifting Function Test
- Brake System Check
- Electrical Safety Inspection
- Final Quality Inspection
With its compact design, stable performance, and convenient operation, the PA-110V series is widely used for small lifting and material handling applications.
Product Features
Compact Aluminum Alloy Structure
Lightweight aluminum alloy casing provides durability and convenient installation.
100% Copper Motor
High-efficiency copper winding motor ensures stable operation and excellent heat resistance.
Single & Double Hook Options
Flexible lifting modes meet different load capacity requirements.
High Strength Wire Rope
Anti-rotation aviation steel wire rope provides reliable lifting performance.
Emergency Stop Function
Emergency stop button quickly cuts off power during abnormal conditions.
Limit Protection System
Optional limit switch automatically stops operation at the lifting limit position.
Thermal Protection
Motor overheating protection helps prevent damage during continuous operation.
Low Noise Gear Transmission
Optimized reduction system provides smooth and quiet operation.
Flexible Control Options
Pendant control and wireless remote control are available.
Electric Trolley Option
Can be equipped with electric trolley for horizontal movement.
Technical Specifications
| Model | PA200 | PA250 | PA300 | PA400 | PA500 | PA600 | PA800 | PA990 |
| Method of use | Single-Hook | Single-Hook | Single-Hook | Single-Hook | Single-Hook | Single-Hook | Single-Hook | Single-Hook |
| Double-Hook | Double-Hook | Double-Hook | Double-Hook | Double-Hook | Double-Hook | Double-Hook | Double-Hook | |
| Rated Volt (V) | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz | AC 110-230V 50/60Hz |
| Input Power (W) | 510 | 530 | 600 | 980 | 1020 | 1200 | 1300 | 1600 |
| Rated load (Single/Double)(kg) | 100 | 125 | 150 | 200 | 250 | 300 | 400 | 495 |
| 200 | 250 | 300 | 400 | 500 | 600 | 800 | 990 | |
| Lifting Speed(Single/Double) (m/min) | 10 | 10 | 10 | 10 | 10 | 10 | 8 | 8 |
| 5 | 5 | 5 | 5 | 5 | 5 | 4 | 4 | |
| Standard Lifting Height(Single/Double)(m) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Qty/CTN (pcs) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 |
| Packing Size (IB/OB) (cm) | 39.5x17x23.5 | 39.5x17x23.5 | 39.5x17x23.5 | 42x18X26 | 42x18X26 | 42x18X26 | 44x18X26 | / |
| 41.5×36.3×25.5 | 41.5×36.3×25.5 | 41.5×36.3×25.5 | 44×38.3×28 | 44×38.3×28 | 44×38.3×28 | 46×38.3×28 | 58.5x25.5x32 | |
| Net Weight/Gross Weight (kg) | 22/22.5 | 22.5/23 | 23/23.5 | 32.5/33.5 | 32.5/33.5 | 34/35 | 37/38 | 31/32 |
Product Advantages
- Capacity range from 100kg to 1200kg
- Compact and lightweight design
- AC110V power supply
- Single hook and double hook operation
- 100% copper motor
- Anti-rotation steel wire rope
- Aluminum alloy housing
- Emergency stop protection
- Optional limit switch
- Optional wireless remote control
- Optional electric trolley
- IP54 protection
- CE & GS certified
- Suitable for indoor and outdoor applications
- OEM & ODM customization available
Applications
The TKK PA-110V Mini Electric Hoist is suitable for:
- Workshop Lifting
- Garage Equipment Handling
- Warehouse Material Handling
- Machinery Maintenance
- Production Line Assembly
- Equipment Installation
- Small Machinery Movement
- Repair Operations
Why Choose TKK PA-110V Mini Electric Hoist?
The TKK PA-110V Mini Electric Hoist combines compact structure, reliable lifting performance, and convenient operation. With a lightweight aluminum alloy body, powerful copper motor, and multiple safety protections, the PA series provides an efficient lifting solution for various small-scale material handling applications.
